The Resurrection of Vixen

Well, the engine is just about done. My last chore is to install the oil return lines for the turbos. I had to drill through the engine block in two places to install the adapters. That's not an easy task. Sure, drilling through the aluminum is no problem, but approaching an engine you've spent the last three months building with a huge drill bit is a bit disconcerting. So... with hesitant hands I drilled the required holes, only to find out that they were way too large. It seems that there is a slight difference between the 'old' twin turbo kit and the 'new' style couplings. Oh well. I'll figure something out to seal the adapters in place.

I also mounted the fuel tank, and ran most of the remaining coolant lines.

That's about it for this week. Things are still moving along nicely. =)

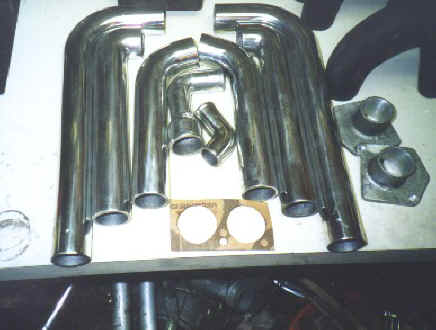

I finished polishing all of the turbo piping. Geesh, is that a chore. It took me almost 10 days to polish everything up so nicely. I'm still digging rouge out of my hair...

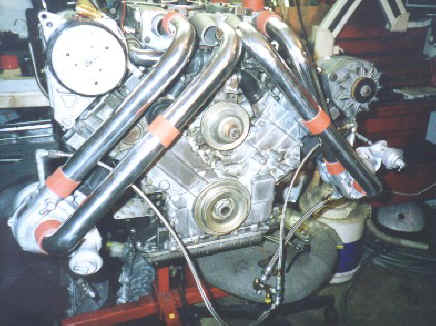

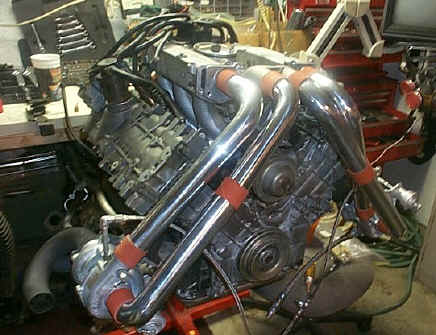

Test-fitting the pipe work...

Check out the shiny air pipes, baby!

Oh, the beauty! =)

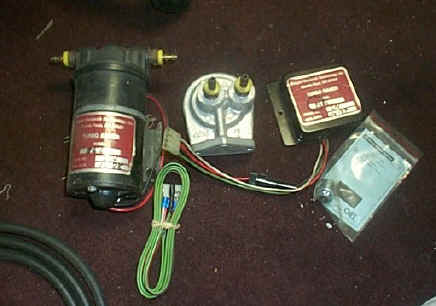

Okay, so I've got a pre-oiler for the turbos. Anyone know how the wiring is supposed to go on this thing?

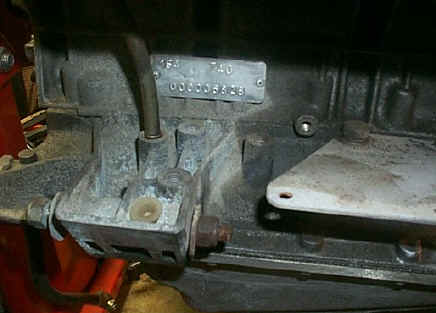

Engine i.d. tag

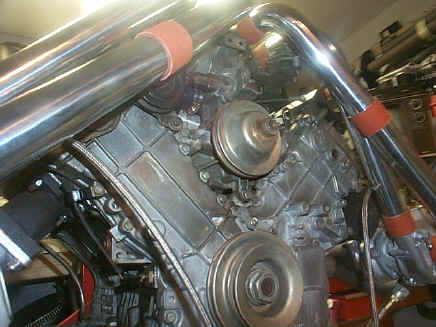

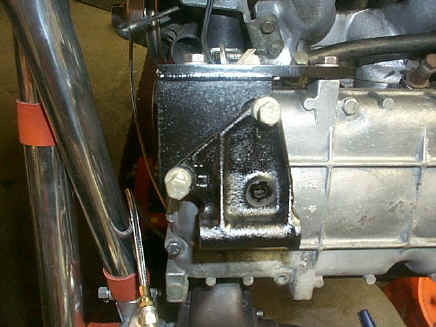

Alternator relocating bracket. Mine is a bit cockeyed... still have to work on that.

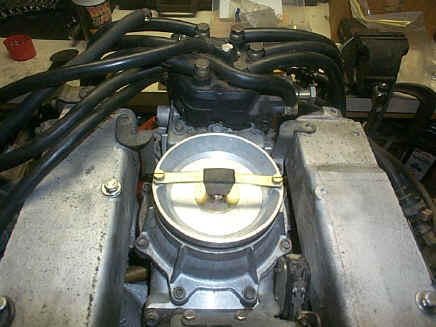

Fuel distributor, et. al.

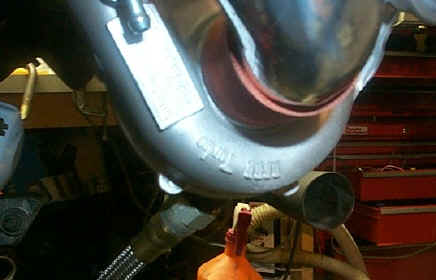

I.H.I. RHB-5 Turbo number One...

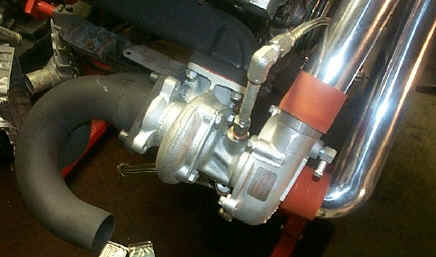

I.H.I. RHB-5 Turbo number two...

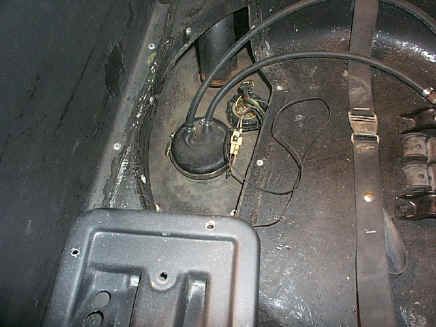

Gas tank mounted in place...

Costs for Week 24:

Date	Purchase	Store	Price
03-Apr-00	Washers	ACE Hardware	0.16
03-Apr-00	O-Rings	ACE Hardware	3.99
03-Apr-00	Hose clamps	ACE Hardware	1.69
03-Apr-00	Windshield adhesive	NAPA	12.75
03-Apr-00	Pipe adapter (turbos)	Busy Beaver	0.89
03-Apr-00	Pop rivets	Busy Beaver	2.99
03-Apr-00	Pipe adapter (turbos)	Busy Beaver	0.89
03-Apr-00	Nuts and bolts for taillight fix	Radio Shack	4.47
03-Apr-00	Fuses (20 amp)	Pep Boys	5.99
03-Apr-00	Pipe fitting	Pep Boys	1.49
03-Apr-00	O-Rings	Pep Boys	1.59
04-Apr-00	102102 Oil pan gasket	DMC Houston	32.40
04-Apr-00	SP10032 M8 washers (14)	DMC Houston	0.84
04-Apr-00	SP10031 M6 washers (6)	DMC Houston	0.30
04-Apr-00	Auto knob set	Radio Shack	2.19
05-Apr-00	Clutch alignment tool	Pep Boys	2.49
05-Apr-00	Electrical tape	Pep Boys	1.19
05-Apr-00	Pipe fitting	Pep Boys	1.49
06-Apr-00	Flywheel resurfacing	Rebco Auto Parts	39.59
		Week 24 Total:	$117.39

		Running Total:	$11,038.47
