Fuel hose Routing
Created: 10/16/00
Last updated:
Author/source: Nick Pitello njp548(AT)aol.com

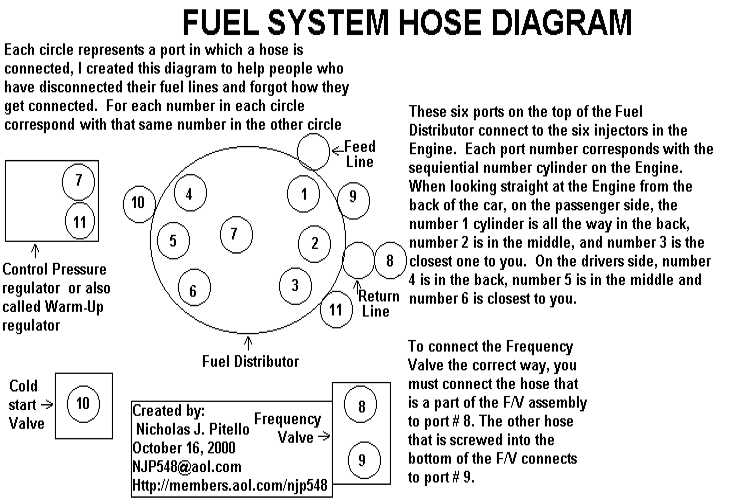

Today I created a Diagram to show the correct way to connect all of the Fuel
hoses for the Fuel Distributor, Control Pressure Regulator, Frequency Valve, and
Cold Start Valve.
